LED MACHINE LUMINAIRES AS RECESSED VERSIONS

LED Recessed Luminaires.

Our LED recessed luminaires differ in terms of length, cover, connection, light temperature and protection class, among other things. Compact, flexible and extremely robust. We therefore present you with a wide range of LED recessed luminaires, with which we can offer you many options for the optimum illumination of your machine.

Here you will find LED recessed luminaires for a wide range of applications and budgets. Many of our customers have opted for the EBLT 250 LED machine luminaires for use in machine tools.

If you need assistance in selecting the right LED recessed luminaires, please do not hesitate to contact one of our experts. We will work with you to find the right solution for your project.

FOR COOLANT AND LUBRICANT APPLICATIONS

LED Machine luminaires as recessed version.

sangel-led-eblt-gruppe2-gh-5315x3543-300dpi-min

LED EBLT
About the different
versions

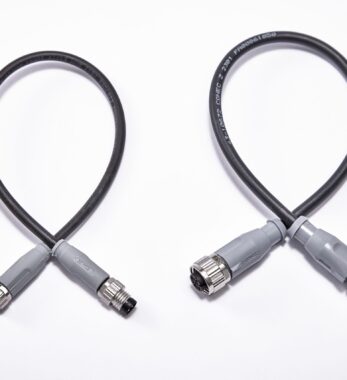

sangel-led-anschlussltg.-M8+M12-kurz-gh-5315x3543-300dpi-min

LED ACCESSORIES
About the different
versions

Expertenkontakt_AlexanderSangel_300x300px

Would you like personal advice?

Our product expert Alexander Sangel will be happy to advise you. Together we will find the right connection for you.

MANUFACTURED TO MEET YOUR REQUIREMENTS

LED customised solutions.

Due to the increasing complexity and the individuality of today’s machines, signaling and lighting are taking up an ever-increasing role of serving as an integrated design component and as a means of optimizing specific processes through the visualization of information.

Though our offerings extensive, standard product do not always fulfill all your mechanical, photometric and interface requirements; therefore, a customized product is sometimes the only possible solution. Why are we the right partner in these cases?

Because of our extensive experience and exposure to the vast projects we have undertaken with our clients to ensure their individual requirements were met with customized and unique solutions, and thanks to the success of these specialized projects, we can now share this experience with you to help you achieve a custom solution quicker and more cost effectively.

ALWAYS WELL INFORMED

Our download centre.

Download the information you require directly.

Whether LED machine luminaieres, LED workstation luminaires, LED signal luminaires or LED special solutions as a modification of existing products or completely new developments:

Find out more about our solutions for machine lighting, workplace lighting or signal lights, including mounting sets, connection cables and extension cables.

You will also find the answers to many questions about the technology of LED Industrial luminaires in our detailed glossary.

OUR VALUES

What sets us apart as a manufacturer
of LED machine luminaires.

german-card

Produced in Germany

As a manufacturer of LED machine luminaires, we have been producing our products in Germany for decades. Every workpiece is manually checked by us at our facility in Bielefeld. We personally carry out all tests such as heat and cold tests, IP and surge tests. This is how we ensure the highest quality for our customers. For maintenance-free LED industrial luminaires with a very long service life.

Customised consultation

Replacing lighting requires discussions and understanding the specific working situation at the machines. The specific design can also play an important role. In a personal consultation, we break down your situation and requirements and work with you to find your optimal machine lighting.

Fair prices

An LED machine luminaire on a machine tool must meet different requirements than a luminaire on a packaging machine. That is why we offer a wide range of combination options – including material, illuminant, cover and design. The result: You will also receive an appropriate, fair price for a suitable luminaire.

FAQ — LED MACHINE LUMINAIRES

Frequently asked questions.

We offer LED luminaires in all protection classes. This also includes 24V LED luminaires with, which fall into protection class III and are thus supplied with protective extra-low voltage. The supply voltage is thus so low that there is no danger from it. 24V LED machine luminaires are used, for example, when working with water.

Our LED luminaires are used in a wide variety of machine tools. These include CNC lathes, CNC milling machines, CNC grinding machines or in CNC machining centres. Flying chips, the use of coolants and lubricants in the vicinity of the LED machine luminaire are the norm. We have the right solutions for you for precisely such requirements.

For packaging machines, the requirements for luminaires are generally lower than for workplaces where high heat and water are used. Protection against dust, for example, is often sufficient. This also has an impact on the price. Here we have specific and cheaper products in the range such as the ELN and SLN solutions.

Machines in the food industry need to be cleaned frequently. The machine luminaires must be protected accordingly. This is recorded in the protection class in the second code number. This concerns protection against ingress of splashes, drips, sprays and jets of water as well as submersion. Thus, we are happy to offer you LED machine luminaires with protection class IP69K as a solution.

The term machine lamp is often used as a synonym. But a lamp is only the illuminant. The luminaire is the overall construction. This also includes an LED machine lamp.

You will find answers to many other questions about the technology of our LED machine luminaires in our detailed glossary.

LED TECHNOLOGIE

Three advantages of LED technology in our machine luminaires.

1

Long performance

LED industrial luminaires have a very long service life. If the light intensity falls below 70 percent, the service life is considered to have expired. In 3-shift operation over five days per week, we guarantee a luminosity of over 70 % for 9.6 years. One reason for the long durability is our design: We work with aluminium core circuit boards. They conduct the heat into the environment via the luminaire housing. As a result, heat generation is significantly lower, which has a positive effect on durability.

Wärmemanagement von LED Industrieleuchten

Good colour rendering

For illumination at the workplace, you need good colour rendering and a uniform colour temperature. This prevents fatigue at the workstation. Our LED industrial luminaires reach a value of more than 80 percent in the colour fidelity index. The diodes are clustered in a CIE standard colour system, known as binning.

2

3

Flexible dimming

Many models of our LED industrial luminaires have an eco mode. This dims the illumination and still emits 30 percent of the luminous flux of normal operation. Machine workstations can thus be made even more ergonomic. When the interior is accessed, the luminaire displays its full brightness. While using the machine interior, it only lights up discreetly. This ensures optimal machine lighting at all times.
